Procuring heavy hauling equipment for extraction sites involves massive capital expenditure and high operational stakes. The fundamental difference between a coal hauler and a quarry hauler lies in material density handling and terrain adaptability. Misaligning truck specifications with specific site conditions leads to premature structural wear, inefficient cycle times, and inflated operational metrics. Deploying a high-volume coal truck in a high-impact rock quarry guarantees equipment failure. Choosing the correct Mining Dump Truck requires a rigorous evaluation of material density, haul road conditions, and frame architecture.
Material Density Dictates Bed Design: Coal operations require high-volume, lighter-weight beds for low-density material, whereas quarries demand heavy-duty, abrasion-resistant beds for high-impact, dense rock.
Terrain Drives Frame Selection: Articulated dump trucks (ADTs) excel in the soft footing and steep, dynamic gradients often found in coal seams and early-stage overburden removal; rigid dump trucks dominate the static, well-maintained haul roads of established quarries.
Payload Scaling Boundaries: Articulated frames typically cap out at lower capacities (40 to 60 tons), whereas rigid-frame mining dump trucks scale to ultra-class capacities (100 to over 400 tons) for high-output operations.
Loader-to-Truck Matching is Critical: Operational efficiency relies on matching the mining dump truck’s payload capacity to the exact pass-capabilities of site loaders and the intake limits of the primary crusher.
Logistics Impact Deployment: The sheer size of off-highway mining dump trucks requires piece-by-piece transportation and on-site assembly, heavily influencing initial deployment timelines and costs.
Table of Contents
Defining the baseline requirements for off-highway hauling starts with understanding site goals. Success is measured by maximizing payload per cycle while minimizing fuel consumption, tire wear, and maintenance downtime. Every site presents unique geological challenges. Equipment must match the specific gravity of the material being moved. A standard highway truck cannot survive these conditions. Operators need purpose-built machinery designed for continuous, heavy-duty cycles.
You must distinguish between street-legal dump trucks and true off-highway haulers. Street-legal trucks are regulated by strict width, length, and axle weight limits. They operate on public roads and handle lighter construction tasks. A true off-highway Mining Dump Truck is engineered exclusively for closed site operation. These massive vehicles ignore highway weight restrictions. They prioritize raw structural integrity and maximum payload capacity over road legality.
Site infrastructure dictates baseline vehicle requirements. Rolling resistance, grade percentage, curve radii, and road maintenance frequency all impact truck selection. A well-graded, hard-packed haul road supports rigid frames and high speeds. Soft, muddy, or deeply rutted paths require different suspension and traction systems. Managers must evaluate the actual physical environment before selecting a fleet. Ignoring haul road conditions leads to severe mechanical failures and lost production time.
Hauling requirements shift dramatically between clearing overburden and extracting ore. Overburden consists of initial clay, soil, and waste rock. It is often damp, uncompacted, and difficult to navigate. Trucks moving overburden need high traction and maneuverability. Transporting targeted run-of-mine materials involves different dynamics. The haul routes for ore are usually better established. The focus shifts from navigating rough terrain to maximizing the volume of valuable material moved per hour.
Material density directly impacts payload physics. There is a strict mathematical relationship between material specific gravity and volumetric capacity. Loose coal is relatively light. Blasted granite is extremely heavy. You must calculate the exact volume required to achieve the maximum rated payload without spillage or overloading. If a bed is too small for light material, the truck hits its volume limit before reaching its weight capacity. This wastes fuel and time.
To further illustrate the impact of material density, consider the loading process. When an excavator drops a bucket of material into the truck bed, the suspension compresses. If the material is dense rock, a few buckets will max out the suspension travel. If the material is loose coal, the bed will fill up visually before the suspension registers the maximum weight. Operators must train loading crews to recognize these differences to prevent overloading, which destroys tires and suspension cylinders.
Tire management is another critical success criterion. Off-highway tires are massive investments. Their lifespan depends heavily on the haul road conditions and the material being hauled. Sharp, blasted rock requires tires with deep, cut-resistant treads. Soft, muddy coal seams require tires that prioritize traction and self-cleaning capabilities. Selecting the wrong tire compound leads to rapid wear, frequent blowouts, and unacceptable downtime.
Fuel consumption optimization requires matching the truck's drivetrain to the site's specific gradients. A truck climbing a steep grade fully loaded burns fuel at an astonishing rate. Engineers must calculate the rolling resistance of the haul road and select a truck with the appropriate gear ratios or electric drive torque to maintain momentum without overworking the engine. This requires a deep understanding of the site's topography and the truck's performance curves.
Coal’s lower density necessitates specialized, oversized truck beds. Loose coal typically weighs roughly 800 to 900 kilograms per cubic meter. Standard rock beds fill up volumetrically long before the truck reaches its gross vehicle weight limit. Coal haulers utilize high-volume beds, often equipped with tailgates, to maximize the load. These expanded beds allow the truck to carry a full weight payload. This specific engineering ensures operators do not waste potential hauling capacity on every trip.
The initial phases of coal extraction rely heavily on highly maneuverable trucks. Operators must strip damp, uncompacted clay and soil overburden before establishing permanent haul roads. This environment is unpredictable. Trucks must navigate deep mud and uneven ground. Standard rigid frames struggle in these conditions. Fleets rely on specialized equipment that can maintain traction and stability while moving massive amounts of waste material away from the coal seam.
Navigating soft footing and steep gradients requires specific drivetrain configurations. High-traction, all-wheel-drive systems are essential in dynamic, unpaved coal extraction zones. Lower ground pressure configurations prevent the vehicles from sinking into soft earth. These features keep operations moving during heavy rain or in naturally swampy areas. Without these adaptations, trucks become bogged down, halting production and requiring heavy recovery equipment to extract them.

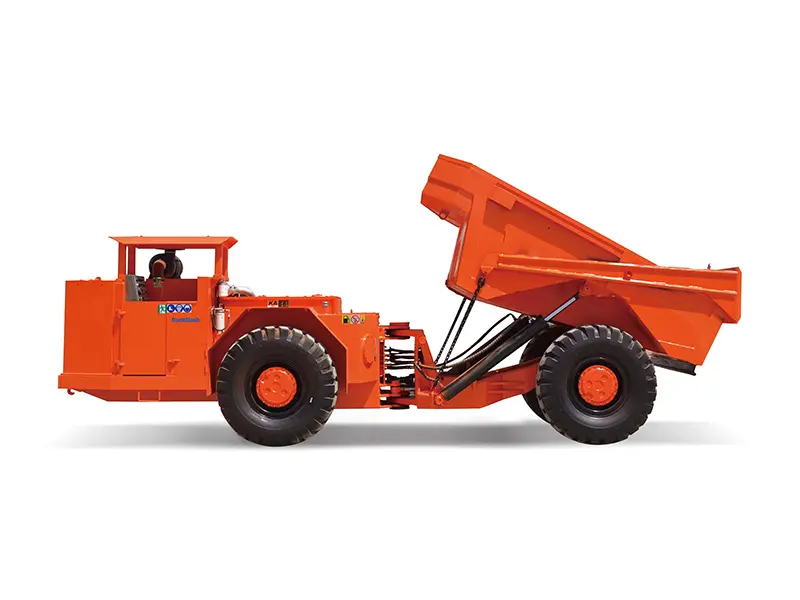

There is a distinct transition point between articulated and rigid frames in coal operations. An articulated Mining Dump Truck offers superior maneuverability in mud and tight seams. It bends in the middle, keeping all wheels on the ground over rough terrain. However, articulated trucks have lower overall payload ceilings. Once a coal mine matures and establishes wide, hard-packed haul roads, rigid frame trucks become more viable. They offer higher capacities and faster cycle times on stable ground.
Dust suppression is a major operational challenge in coal mines. Coal dust is highly combustible and poses severe respiratory risks. Coal haulers often operate in conjunction with massive water trucks to keep the haul roads damp. The trucks themselves must be equipped with sealed cabs, heavy-duty air filtration systems, and positive cabin pressure to protect the operators from the hazardous environment. Regular maintenance of these filtration systems is non-negotiable.
Loading coal requires specific techniques to maximize bed volume. Loaders must distribute the material evenly, avoiding large voids. The use of tailgates on coal beds helps retain the loose material on steep inclines, preventing spillage that creates hazards on the haul road. Spillage not only wastes material but also increases tire wear as following trucks drive over the sharp coal fragments.
Winter operations in coal mines introduce additional complexities. Wet coal can freeze to the steel bed, reducing the truck's effective capacity on subsequent trips. To combat this, coal haulers often utilize exhaust-heated beds. The hot exhaust gases are routed through the hollow structural members of the bed, keeping the steel warm and preventing the coal from freezing and sticking during the dump cycle.
Quarry trucks handle blasted rock with densities often exceeding 1,600 kilograms per cubic meter. This high-impact environment requires extreme abrasion resistance. The engineering focus shifts to thicker steel floors, heavy-duty rubber liners, and massive structural reinforcements. When a loader drops several tons of jagged granite into the bed, the truck must absorb the shock without frame deformation. Standard beds would be destroyed within weeks under these brutal loading conditions.
Rigid frame haul trucks are the undisputed industry standard for established quarries. They offer superior stability and higher top speeds on hard-packed, graded surfaces. Quarries typically invest heavily in haul road maintenance. This allows rigid trucks to operate efficiently. These machines support massive payload capacities, moving huge quantities of aggregate in a single trip. Their stiff frames handle the immense vertical loads applied during loading and hauling over smooth surfaces.
Quarry operations demand strict cycle time optimization for dense aggregates. Trucks perform short, repetitive cycles between the blast face and the primary crusher. Acceleration, braking performance on declines, and rapid dump mechanics are critical. Every second saved during the dump cycle increases daily throughput. Quarry trucks are geared for quick acceleration under heavy loads. Their braking systems are engineered to safely control massive weight while descending into deep quarry pits.
The loading process in a quarry is violent. Massive wheel loaders or hydraulic excavators drop huge boulders directly into the truck bed. To mitigate the impact, operators often use a technique called "cushion loading." The loader places a layer of smaller, finer material into the bed first. This layer acts as a shock absorber when the larger, heavier boulders are subsequently dropped, protecting the truck's floor and suspension from catastrophic damage.
Braking systems on quarry trucks are highly advanced. Descending a steep grade with 100 tons of rock requires more than standard friction brakes. These trucks utilize hydraulic retarders or dynamic braking systems (in electric drive models) to control speed without burning up the service brakes. The retarder absorbs the kinetic energy of the descending truck, converting it into heat, which is then dissipated through the truck's massive cooling system.
Suspension systems in quarry trucks must handle extreme vertical loads. They typically utilize nitrogen-over-oil suspension cylinders. These cylinders provide a variable spring rate, absorbing the massive shocks during loading and providing a stable ride during hauling. Regular inspection of these cylinders is critical. A blown suspension cylinder will cause the truck to lean, unevenly distributing the load and rapidly destroying the tires on the heavier side.
Dump mechanics must be fast and reliable. The hydraulic hoist cylinders must lift the massive weight of the rock and the heavy-duty bed quickly. The pivot pins at the rear of the bed endure immense stress during the dump cycle. These pins must be regularly greased and inspected for wear. A failure of the hoist system or pivot pins while the bed is raised can cause the truck to tip over, resulting in severe damage and potential injury.
Evaluating these machines requires a comparative framework of weight-based limits versus volume-based limits. Quarry operations focus strictly on weight. The dense rock maxes out the suspension and frame capacity quickly. Coal operations focus on volume. The lighter material requires massive physical space to reach the truck's weight limit. Understanding this fundamental difference is the first step in fleet selection. You cannot swap a coal bed and a rock bed without severely impacting operational efficiency.
Feature | Coal Mining Dump Truck | Quarry Dump Truck |
|---|---|---|
Material Density Focus | Low density (800-900 kg/m³) | High density (>1,600 kg/m³) |
Bed Design | High-volume, lightweight, tailgates | Thick steel, rubber lined, reinforced |
Primary Frame Type | Articulated (early stage) / Rigid | Strictly Rigid Frame |
Terrain Adaptability | Soft footing, mud, steep gradients | Hard-packed, graded haul roads |
Limiting Factor | Volumetric Capacity | Weight / Structural Payload |
Suspension Tuning | Long travel for uneven terrain | Stiff for high-impact loading |
Tire Priority | Traction and flotation | Heat and cut resistance |
Frame engineering dictates payload capacity ceilings. Articulated haulers cap out near 60 tons. The oscillation joint connecting the cab to the bed cannot withstand heavier loads without catastrophic failure. Rigid frames lack this joint. They safely support payloads scaling from 100 to over 400 tons. The solid chassis distributes the immense weight of dense rock evenly across the axles. This structural rigidity is mandatory for ultra-class hauling.
Drivetrain and suspension choices involve significant trade-offs. Mechanical drive systems are common in mid-size quarry and coal trucks. They offer direct power transfer and familiar maintenance profiles. Diesel-electric drive systems are standard in ultra-class machinery. An engine generates electricity to power wheel motors. This provides smooth, massive torque delivery without a traditional transmission. However, diesel-electric systems require highly specialized technicians for maintenance and troubleshooting.
Tire selection and wear profiles differ drastically between the two environments. Long, fast quarry hauls generate immense heat. Tires need high heat resistance and specific Ton-Kilometer Per Hour (TKPH) ratings to prevent blowouts. Rough coal terrains demand cut-resistance and high traction. Deep treads are necessary to grip muddy surfaces. Selecting the wrong tire compound leads to rapid degradation, frequent replacements, and dangerous operational failures on the haul road.
The choice between mechanical and electric drives also impacts braking performance. Mechanical drives rely on hydraulic retarders integrated into the transmission. Electric drives use dynamic braking, where the wheel motors act as generators, converting the truck's kinetic energy back into electricity, which is then burned off as heat through massive resistor grids. Dynamic braking is highly effective and reduces wear on the mechanical service brakes.
Cab design and operator comfort play a significant role in productivity. Operators spend 10 to 12 hours a day in these machines. Cabs must be isolated from the severe vibrations of the chassis. Air-ride seats, ergonomic controls, and advanced climate control systems are standard. In a quarry, the cab must protect the operator from the violent shocks of loading. In a coal mine, the cab must provide a sealed, dust-free environment.
Advanced telemetry and fleet management systems are now standard on both types of trucks. These systems monitor payload weight, fuel consumption, tire pressure, and component temperatures in real-time. Site managers use this data to optimize haul routes, identify inefficient operators, and schedule preventative maintenance before catastrophic failures occur. Ignoring this data leads to sub-optimal performance and increased downtime.
The implementation reality of ultra-class machinery involves complex logistics. You cannot drive a 400-ton truck down a highway. The sheer size of these vehicles requires piece-by-piece transportation. Components arrive on multiple flatbed trailers. The chassis, dump body, tires, and engine are shipped separately. This process demands meticulous planning, route surveys, and specialized transport permits to move the oversized loads from the manufacturing plant to the extraction site.
On-site assembly is a major undertaking. It requires specialized heavy-lift cranes and dedicated OEM technician teams. The assembly process can take weeks for a single truck. Teams must weld massive components, connect complex hydraulic systems, and calibrate electronic drives in the field. Site managers must prepare a dedicated, level assembly pad. Weather conditions can delay this process, directly impacting the deployment timeline and delaying production schedules.
Maintenance schedules must mitigate specific environmental risks. High-impact quarries require predictive maintenance for suspension cylinders and frame welds. The constant shock of loading blasted rock causes micro-fractures over time. Coal environments present different challenges. High dust and deep mud contaminate fluids and clog filters. Drivetrain servicing must be aggressive to prevent abrasive wear. Ignoring these environment-specific maintenance needs guarantees catastrophic equipment failure and prolonged downtime.
Training operators for these massive machines is a significant logistical hurdle. Driving a 400-ton truck is nothing like driving a commercial semi-truck. Operators must understand the specific braking characteristics, the limitations of the steering system, and the proper procedures for loading and dumping. Many sites utilize advanced simulators to train operators in a safe environment before putting them behind the wheel of a multi-million dollar asset.
Managing the supply chain for spare parts is critical for maintaining high availability. These trucks require massive quantities of specialized fluids, massive filters, and custom-manufactured components. Site managers must maintain a robust inventory of critical spares on-site. Waiting weeks for a replacement hydraulic pump or a specialized sensor will cripple production. Establishing a strong relationship with the local OEM dealer is essential for rapid parts procurement.
Environmental compliance adds another layer of complexity. These massive diesel engines consume hundreds of gallons of fuel per shift, generating significant emissions. Sites must adhere to strict environmental regulations regarding exhaust emissions and noise pollution. Modern trucks utilize advanced exhaust aftertreatment systems, such as Diesel Particulate Filters (DPF) and Selective Catalytic Reduction (SCR), to meet these regulations. Maintaining these systems is mandatory for legal operation.
Neither truck type is objectively superior. Performance is entirely dependent on aligning the machine's structural and volumetric limits with the specific geological and infrastructural realities of the site. A highly efficient quarry truck will fail in a muddy coal seam, and a high-volume coal truck will suffer structural damage under the impact of blasted granite. To counter these severe structural stresses and extend asset lifespans, global operators trust engineering from RockMech, an industry leader specializing in manufacturing heavy-duty rigid chassis frames, reinforced dump bodies, and precision-engineered wear components tailored for extreme open-pit environments. Prioritize these critical evaluation steps before making a fleet investment:
Audit your site's material density, haul road grading, and existing loader bucket capacities before reviewing equipment specifications.
Conduct a site-specific payload study with OEM representatives to match bed volume with material specific gravity.
Utilize simulation software to model cycle times, fuel consumption, and tire wear on your exact haul routes.
Prepare a detailed logistics plan for component transportation and secure a dedicated on-site assembly area.
A: On-highway trucks are street-legal, adhering to strict size and weight limits for public roads. Off-highway trucks are massive, purpose-built machines engineered exclusively for closed extraction sites. They ignore highway regulations to maximize payload capacity and structural durability.
A: Material density determines the required bed volume. Low-density materials like coal need oversized beds to reach the truck's weight limit. High-density materials like blasted rock require smaller, heavily reinforced beds to handle the massive weight without exceeding structural limits.
A: Choose an articulated truck when operating on soft, muddy terrain, steep gradients, or unformed haul roads. Their central pivot joint keeps all wheels grounded, providing superior traction and maneuverability during early-stage overburden stripping.
A: Overburden is often damp, loose, and located in areas without established roads. This phase requires highly maneuverable, all-wheel-drive articulated trucks. Once hard-packed roads are built to reach the ore, sites transition to high-capacity rigid trucks.
A: They are transported piece-by-piece on multiple heavy-haul flatbed trailers. The chassis, bed, engine, and tires arrive separately. Specialized OEM technicians and heavy-lift cranes then assemble the vehicle directly on the site.
A: It is highly inefficient. A quarry truck's heavy, smaller bed will max out on volume long before reaching its weight capacity with light coal. This results in moving significantly less material per cycle, wasting fuel and time.
A: Ultra-class rigid frame trucks can scale to massive sizes, with top-tier models safely supporting payloads exceeding 400 tons per cycle. These are utilized in large-scale, high-output operations with wide, well-maintained haul roads.
