Technical Features:

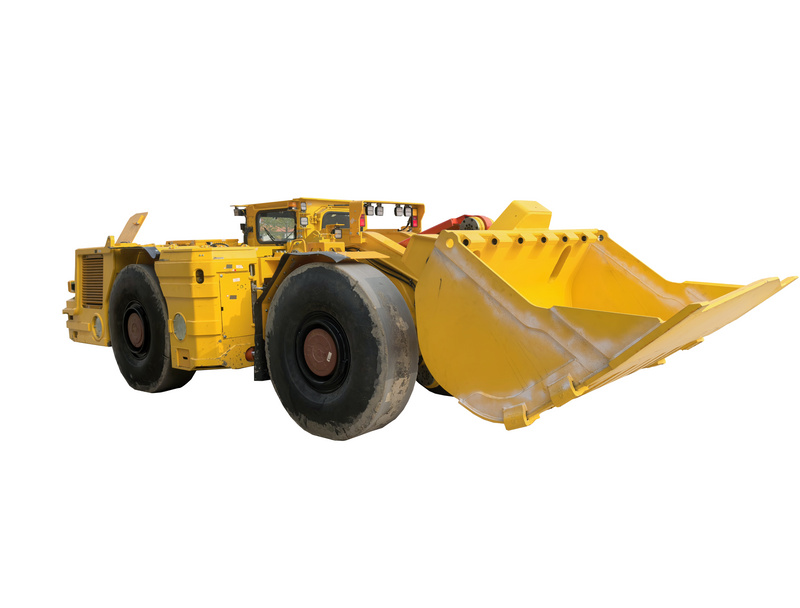

● The CY-6 underground loader is equipped with a factory-installed Volvo water-cooled engine, matched with a platinum dry exhaust gas silencing and purification device from ECS (Canada), meeting emission standards.
● The CY-6 underground loader uses a hydraulic torque converter and power shift transmission from DANA (USA), a heavy-duty drive axle from KESSLER (Germany), and features spring-loaded hydraulic brakes with pressure oil cooling, ensuring simple operation and stable performance.
Product parameter:
Standard bucket capacity | 6m³ |
Dimensions (L x W x H) | 11049×2730×2793mm |
Rated load: | 14000kg |
Maximum dump height | 2406mm |
Maximum dump distance | 1712mm |
Maximum gradeability | 15° |
Minimum ground clearance | 386mm |
Tire model | 26.5-25 |
Braking system | Integrates working brake and parking brake, adopts spring brake and hydraulic release brake |
