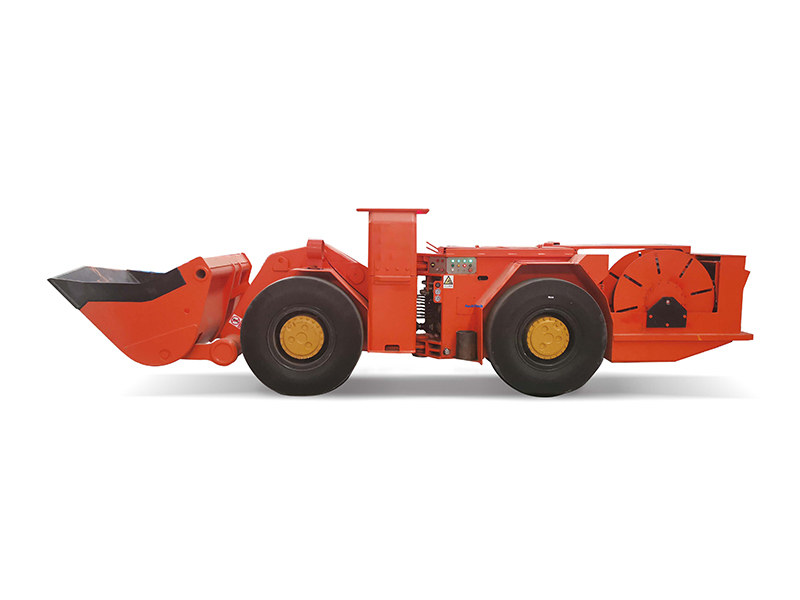

Do massive ore volumes and long tunnels strain your loading equipment? The Electric LHD Loader for Underground Mining - Large Mine Special is built for scale, moving more ore with less downtime. Designed for 24/7 operations, this loader combines high capacity, electric efficiency, and durability to meet the needs of large-scale mines.
A 6-ton bucket and reinforced lifting arms handle 20% more ore per cycle than standard electric loaders. The 100kWh lithium-ion battery provides 10+ hours of continuous operation and supports rapid swapping, ideal for non-stop shifts. Main haulage roads see 15% fewer trips, cutting energy use and operator fatigue.
The low-profile body (3.2m height) clears 3.5m tunnel ceilings, while articulating axles navigate 15° curves smoothly. A GPS-enabled fleet system tracks location, battery life, and productivity in real-time, helping you optimize routes and avoid bottlenecks in complex layouts.
Oversized cooling fans prevent motor overheating, and the steel frame withstands 50,000+ loading cycles—25% more than standard models. Replaceable tungsten carbide wear plates extend bucket life by 50% when handling abrasive ores like iron or copper.
• Zero Emissions: Improves air quality in crew-heavy areas and meets strict environmental standards.
• Cost Efficiency: Electric power costs 50% less than diesel per ton hauled, with no exhaust system maintenance.
• Quiet Operation: 85dB noise level reduces hearing strain and improves communication in busy tunnels.
• "Increased throughput without more machines"
John Davis, Australian Iron Ore Giants
"30 loaders across our 5km network. 10-hour battery life means one charge per day, and fleet tracking cut idle time by 30%. Annual ore output up 10%—no extra equipment needed."
• "Perfect for deep-level mining"
Sophie Chen, Chinese Copper Conglomerate
"Low profile fits 3.3m drifts, extra bucket capacity means fewer trips. Electric torque handles wet ore effortlessly—no more wheel spin on slippery surfaces."
The Electric LHD Loader - Large Mine Special delivers high capacity and reliability for 24/7 operations. Contact us to discuss fleet pricing or schedule a site visit to see how it can boost your productivity.

Standard bucket capacity | 1.5-2m³ |
Dimensions (L x W x H) | 7076×1580×1950mm |
Rated load | 3000kg |
Maximum traction | ≥85kN |
Maximum shovel force | ≥70kN |
Maximum lifting height | 4100mm |
Maximum dump distance | 1875mm |
Driving speed | I 2.16km/h Ⅱ 4.08km/h Ⅲ 8.52km/h |
Maximum gradeability | ≤25% |
Minimum ground clearance | 250mm |
Minimum turning radius | 5180mm(Outside) |
Maximum steering angle | ±40° |
Tire model | 12.00-24 (Mining Tire) |
Braking system | Integrates working brake and parking brake, adopts spring brake and hydraulic release brake |
